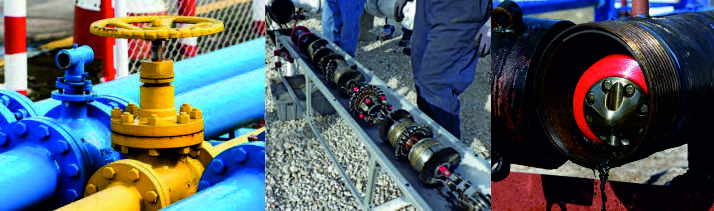

Corrosion Mapping/ Defect Detection of field pipelines by Intelligent Pigging

Corrosion Mapping/ Defect Detection of field pipelines by Intelligent Pigging

We offer ultrasonic pigging (by using In-line inspection tool EasyPig™ UT) and MFL Pigging (by using In-line inspection tool EasyPig™ ) services for small diameter (4”, 6” & 8”) field pipelines with the help of M/s. Intron VTD, Russia

intron logo

Advantages of EasyPig UT

  • Non-expensive. Possibility to run while performing pipeline cleaning.
  • Measurement of protective coating thickness allowing to forecast corrosion damage.
  • Detection of laminations in pipeline wall.
  • Detection of pipe wall metal thickness and internal pipe profile allowing to estimate the time of pipelines safe operation.
  • Inspection of non-ferromagnetic pipes including the ones made of polyethylene and stainless steel.
  • Detection of severe defects and pipeline features, including illegal tapping.
  • Detection of pipeline inner radius.

Advantages of EasyPig™

  • Low inspection costs due to removal of excessive inspection information, allowing to include in-line inspection using EasyPig™ into routine pipeline cleaning operations.
  • Design allowing to inspect pipelines unpiggable for traditional in-line inspection tools.
  • Brushless design.
  • Pipeline condition. monitoring including provision of information on illegal tapping locations.
  • Short term data analysis and report preparation.

Applications

  • Purpose : In-line diagnostics of field pipelines, identifying defects and structural features of the internal and external surfaces of the walls of pipelines, as well as determining their position by remote and section of the pipeline.
  • Area of Application – Field pipelines of oil gathering, Reservoir pressure maintenance system, Products pipeline, Field gas pipelines, Distribution gas pipelines, etc.
  • Operating pressure: – from 1MPa to 10MPa. In gas minimum pressure is 2MPa.
  • Detects metal loss, corrosion defects, pinholes on the inner and outer surface of the pipeline wall, defects in welds (lack of penetration, inconsistencies).

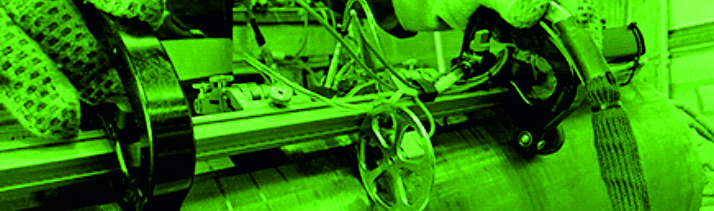

In Service High Temperature PAUT/TOFD (Upto 350°C)

In Service High Temperature PAUT/TOFD (Upto 350°C)

Special high temperature resistant PAUT/TOFD probes and wedges were designed to be used up to 475°C (887°F) for weld defect detection. The PAUT/TOFD technology can be continuously used up to 350°C (662°F). The wedges are designed with cooling channels to keep the temperature under control. Special couplant and wedge material is used to accommodate the ultrasound beam travelling into the material. High temperature PAUT/TOFD probes are made in a way that they can resist elevated temperatures.

Technology partner:

sonoinspec-logo

Advantages

  • Fast & accurate inspection, direct results, no radiation.
  • Weld inspections at high temperature, no shutdown needed.

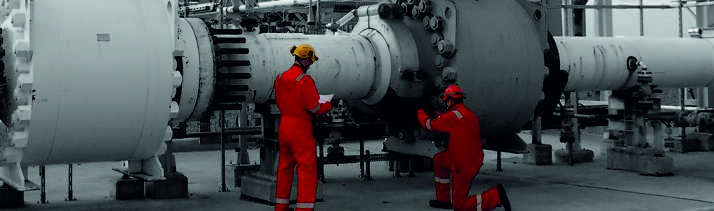

Fitness For Services (FFS)

Fitness For Services (FFS)
Fitness for Services, assist our clients in setting up a non-intrusive (NII) inspection plan, with the aim to keep plant availability, reduce cost and HSE performance to the highest level.

Advantages

  • Increase of plant availability.
  • Reduce TA inspection scope.
  • Implement NII inspections.
  • Implement inspection approach when the plant is online (high temperature inspections).
  • Approach based on damage mechanisms as described in API581.
  • Increase of HSE, reduce cost and Production performance.
